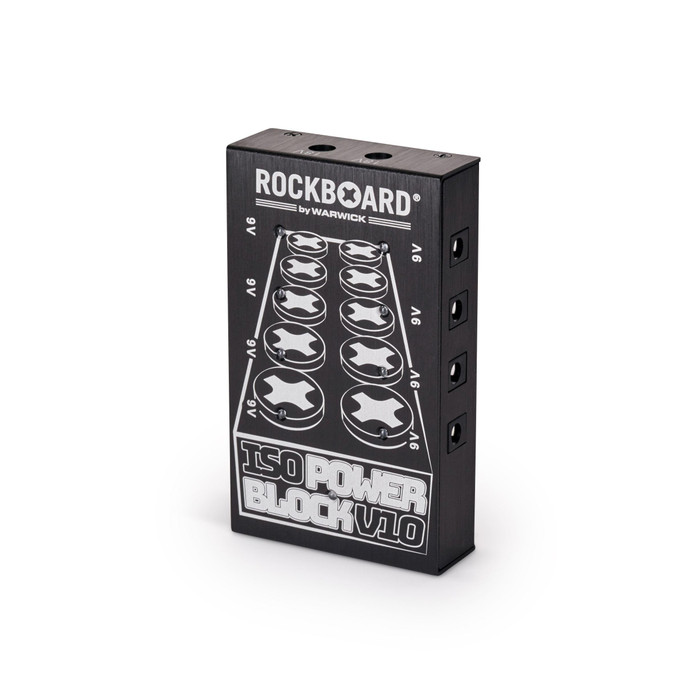

ROCKBOARD ISO POWER BLOCK V10 – ISOLATED MULTI POWER SUPPLY

Rp2.841.250 Rp2.273.000

multi-power supply for effects pedals
10 transformer isolates power slots
advanved filter technology prevents high frequency noise
external transformer prevents low frequency interference
max. total current output 2.000 mA
8 x 9V power outputs @ 150 mA each, 2,1 x 5,5 mm barrel plug, polarity (-) center
2 x 18V power outputs @ 400 mA each ), 2,1 x 5,5 mm barrel plug, polarity (-) center
individual status LEDs and short circuit protection for all 9V DC slots
input voltage 18V DC
incl. 1 x power adapter 18V DC, 2A with exchangeable regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240 V AC, , 2,1 x 5,5 mm barrel plug, polarity (-) center
incl. 10 x RockBoard Flat Power Cable, 60 cm -for connecting effects pedals
incl. 1 x RockBoard Power Ace Voltage Doubler Y-Cable, 20 cm / 7 7/8″ (blue) – for bridging 2 slots and doubling/combining the volt output
incl. 1 x RockBoard Power Ace Current Doubler Y-Cable, 20 cm / 7 7/8″ (white) – for bridging 2 slots and doubling/combining the current output
dimensions (L x W x H) 123 x 70 x 26 mm / 4 13/16″ x 2 3/14″ x 1″
weight 180 g / 0,4 lb.

SKU: HR902H Categories: , Tags: , Brand:

RockBoard ISO Power Block V10 – Isolated Multi Power Supply
The RockBoard ISO Power Block V10 is a multi power supply fort effects pedalsthat offers 10 transformer isolated and highly filtered power slots – 8 x 9 volts (isolated) with a max. current output of 150 mA each, und 2 x 18 volts (isolated) with a max. current out put of 400 mA each – for separately powering a total of up to 10 effects pedals simultaneously without any noise. The advanced filtering technology used in each of the power slots prevents high frequency noise. Through individual short circuit protection for each slot, connected effects pedals are effectively protected in case of a short circuit. Individual LEDs indicate short circuits for each of the 9V outputs. In case of a short circuit, only the affected slot is being turned off, so undesturbed use of the rest of the effects pedals is guaranteed.

Weight 1 kg
